Open price not currently available. Please Contact Us

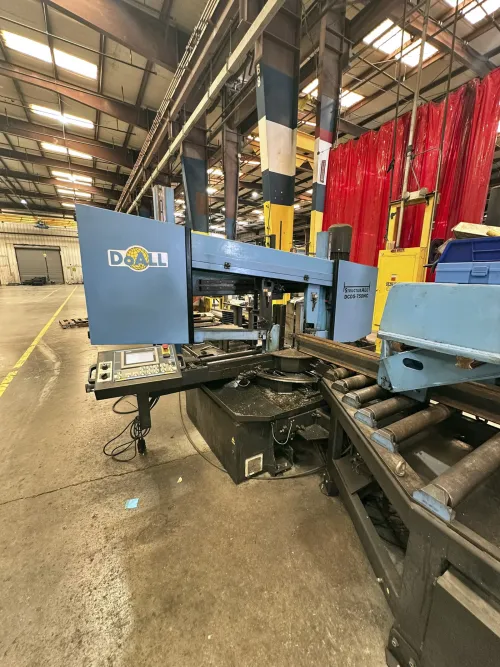

DOALL DCDS-750CNC 2018
2018 Low Hour Machine. Machine Capacity: W 29.5" x H 18.75"
-
DOALL
-
DCDS-750CNC
-
2018
-
Siemens
-
#3716543
-
N/A
MACHINE SPECIFICATION
-
Capacity
w 29.5" x h 18.75"
-
Hollow Tube
19.5" (500mm)
-
Round Solid
9" (229mm)
-
Saw Blade
-
Width x Length
1-1/2" x 270"
-
Band Drive
-
Motor HP.
7.5 Hp
-
Band Speed
65-328 fpm
-
Band Tension
Hydraulic
-
Hydraulic System
-
Motor HP
1 Hp
-
Reservoir Size.
12 Gallon
-
Coolant System
-
Flood
Yes
-
Mist Lubricator
Yes
-
HP
0.2 Hp
-
Indexer
-
Length per Stroke
78.5"
-
Maximum Index Strokes Length
393"
-
Remnant Length at 90 degrees
5"
-
Reservoir Size
10 Gallon
MACHINE EQUIPPED WITH
Hydraulic Dual Swivel Head
- Movable Operator Console with Siemens Controls
- Single adustable horizontal conveyor roller - 1543 lbs/ft capacity. Infinite band Controlled by Variable Frequency Drive
- Recirculating Coolant System
- Programmable Material Height Sensor
