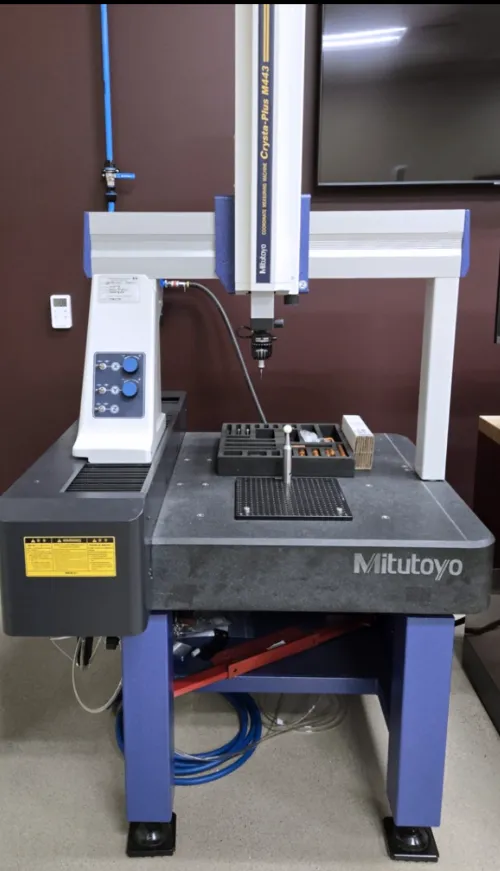

Mitutoyo Crysta-Plus M443 2014

MACHINE SPECIFICATION

• X Axis

  15.75” (400 mm)

• Y Axis

  15.75” (400 mm)

• Z axis

  11.81” (300 mm)

• Max. Workpiece Height

  18.9” (480 mm)

• Max. table loading

  396 Ibs (180 kg)

• Workpiece Clamping

  No. of M8 x 1.25” Threaded Holes 13

• Environmental temperature

  20 °C ±1 °C

• Resolution Length measuring system

  .00002” (0.5µm)

• Air bearing

  Guidance Air bearings on all axes

• Material Granite Dimensions

  33.07” x 51.97” (624 x 805mm)

• Air supply Consumption/air pressure

  ca. 50 l/min at 0.35 MPa

• Width

  38.62” (981 mm)

• Depth

  41.22” (1047 mm)

• Height

  77.44” (1967 mm)

• Mass (with supporting table)

  904 Ibs (410kg)
