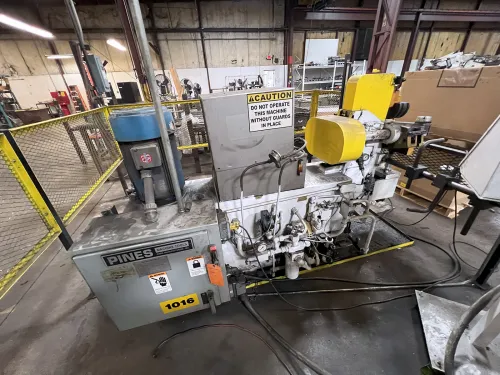

Pines 3T 1995

MACHINE SPECIFICATION

• Steel tube capacity

  1.25" x .065" wall

• Round Tubing Mild Steel

  Y.P. to 40,000 psi – 1.25” x .065

• Round Tubing Non-ferrous

  Y.P. to 25,000 psi – 1.25” x .083

• Round Tubing Stainless Steel

  Y.P. to 60,000 psi – 1.25” x .049

• Square Tubing Mild Steel

  1” x .065

• Round Bar Mild Steel

  ¾”

• Square Bar Mild Steel

  9/16”

• Maximum section modulus, mild steel

  .072

• Bending

  Bends one tube at a time

• Production Capacity

  Bends per hour approximate – 1,000 strokes (bends)

• Maximum standard radius for 90° bend

  4.5”

• Minimum radius to diameter ratio

  2 to 3

• Maximum Bend Angle

  140º

• Maximum bend angle with special tooling

  165°

• Bend arm repeatability

  ± ¼°

• Motor horsepower

  20HP

• Approximate Weight

  4,600 lbs

• Overall Height

  60 inches

• Working height to dies

  40 inches

• Footprint (floor space required)

  30 x 80 inches

• Weight

  2,900 lbs

• Pines Model

  3T vertical hydraulic
