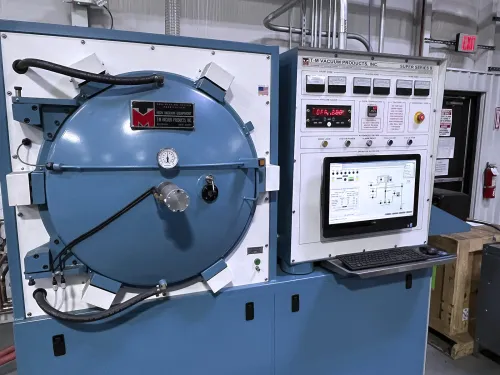

T-M Vacuum Products Super Series X SS12/24-13MCX 2015
2400° F Maximum Temperature
-
T-M Vacuum Products
-
Super Series X SS12/24-13MCX
-
2015
-
N/A
-
#3717832
-
N/A
MACHINE SPECIFICATION
-
Maximum Temperature
2400 °F
-
Usable Work Zone
12″ W × 12″ H × 24″ D
-
Load Capacity
200 lb
-
Pump Down (Atmosphere to 0.1 Torr)
7 minutes
-
Pump Down (to 1×10⁻⁵ Torr)
15 minutes
-
Temperature Controllability
±1 °C
-
Temperature Uniformity
±3 °C or better
-
Net Pumping Speed
3,000 L/s
-
Forced convection blower
10 HP, 4,200 CFM
-
Operating Pressure Range
Atmosphere to 2 bar
-
Working pressure at maximum temperature
High-vacuum to 1 Torr
MACHINE EQUIPPED WITH
Cryogenic System
- All-stainless- dual wall- fully water jacketed chamber with pneumatic door clamps
- Electro-pneumatically operated Heat Pack door shield assembly
- Removable Hot Zone
- Molybdenum Hearth
- 46cfm mechanical roughing & backing pump
- 6 cfm mechanical hold pump
- 250mm diffusion pump
- High-Vacuum Valve: Two position Gate Valve
- SCR power supply regulation
- 3-zone heat control with independent PID loop control
- 10 HP blower providing 4200 cfm
- Gas/Water heat exchanger
- 18 vents directing quick-cool gas onto workload
- Computer based control system with fully automated operation
- Recipe storage and HMI interface (23″ touchscreen)
- Data logging and Ethernet communication
- UPS power backup
