$6,500.00 Listing Price
Trak DPM A.G.E. 3 1999
-
Trak
-
DPM A.G.E. 3
-
1999
-
TRAK A.G.E. 3
-
#3689913
-
N/A
MACHINE SPECIFICATION
-
T-Slots
63mm x 2.5"
-
X-Axis Travel
31"
-
Y-Axis Travel
17"
-
Z-Axis Travel
23.5"
-
Spindle Head
-
Quill Diameter
100mm
-
Spindle Taper
#40 NST, NMTB
-
Speed Range
70-4200 RPM
-
Spindle Nose to Table (max part height)
0-25"
-
Spindle Center to Column Face
17.3"
-
Quill feeds:
0.002, 0.004, 0.006 in/revolution
-
Head Swivel
90 degrees (right to left)
-
Spindle Motor
-
spindle power
3 Hp
-
Voltage
220V or 440V
-
Phase
3 Phase
-
Cycles
60 Hz
-
Current
8.6/4.3 amp
-
Maximum Workpiece Weight
1320 lbs
-
Maximum Machining Capacities
-
Drilling Mild Steel
1.5" diameter
-
Tapping Capacity
1.25"
-
Milling Speed
3 cubic in/minute
-
Boring
4.75"
-
Approx Shipping Weight
4500 lbs
-
Pallet Size
6' x 6'
MACHINE EQUIPPED WITH
DRO
- Box Tooling
- Table Vices
MACHINE DESCRIPTION

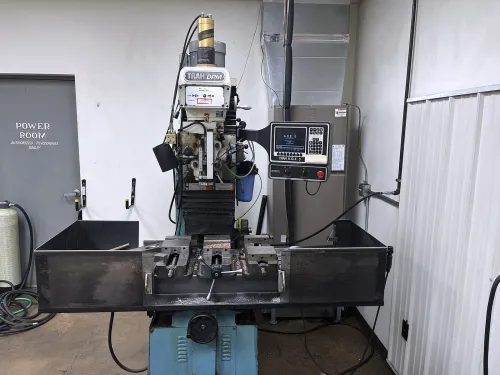

Used 1999 Trak DPM RX7. Machine Tool Bids offers plenty of and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Trak DPM RX7 or any of our machines.
