Open price not currently available. Please Contact Us

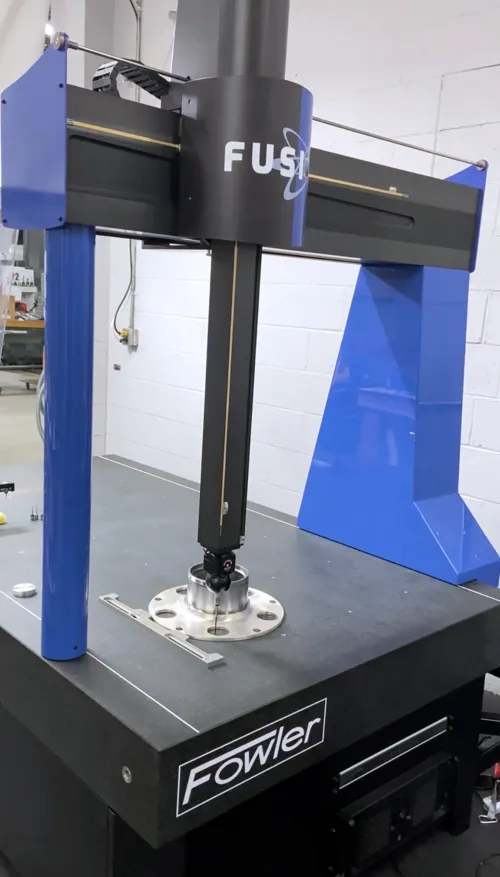

Zenith 3 1500/Fusion Mark 4 2019
Recently Calibrated - Under Power
-
Zenith
-
3 1500/Fusion Mark 4
-
2019
-
N/A
-
#3716997
-
N/A
MACHINE SPECIFICATION
-
X Travel
1000 mm
-
Y-Travel
1500 mm
-
Z-Travel
600 mm
-
Resolution
0.0005mm (Renishaw Scale & Readhead)
-
Component Load Capacity
1500 kg
-
Max Velocity Vector
600mm/sec
-
Max Acceleration Vector
600mm/squared seconds
-
Air Consumption
50l/min (1.8 cfm)
-
Required Air Pressure
4 Bars (60 psi)
-
Volumetric Accuracy
0.0027mm + 4L/1000mm
MACHINE EQUIPPED WITH
High Speed Dedicated Control System
- Upgrade Probe Head PH10T w/ TP20 probe
- Dual Monitor
- Automatic ambient temperature compensation
- Touch Joystick - Deva 031
- Software (Includes free software updates and support for LIFE)
- Programming from CAD software module
- Probe Module Change Rack
- Reference Ball
- Air Filter
