Open price not currently available. Please Contact Us

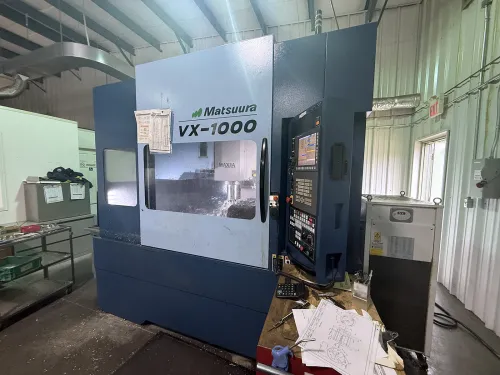

Matsuura VX-1000 2018
Tsudakoma TWA-160 NC tilting rotary table with 200mm face plate
-
Matsuura
-
VX-1000
-
2018
-
Matsuura G-Tech 31i
-
#3723070
-
5 Axis Machining Center
MACHINE SPECIFICATION
-
Hours
8,273
-
# of Axis
5
-
X-Axis Travel
40.15"
-
Y-Axis Travel
24.01"
-
Z-Axis Travel
24.01"
-
B-Axis Travel
-30° to +110°
-
C-Axis Travel
360°
-
X-Axis Rapid Traverse Rate
1,574.8 in/min.
-
Y-Axis Rapid Traverse Rate
1,574.8 in/min.
-
Z-Axis Rapid Traverse Rate
1,417.3 in/min.
-
Table-L
47.24"
-
Table-W
23.62"
-
Max Table Load Capacity
1,100 lb
-
Max Spindle speed:
15,000 RPM
-
Spindle Taper
CAT40
-
TOOL CAPACITY
30ATC
MACHINE EQUIPPED WITH
Control: Matsuura G-Tech 31i
- Tsudakoma TWA-160 NC tilting rotary table with 7.8" (200mm) face plate
- Coolant Through Spindle - up to 300 psi
- Renishaw OMP-40 In Process Part Probe
- Renishaw NC-4 Non-Contact Laser Tool Probe
- Lang Makro-Grip 5-Axis Vise
- Lift-up Chip Conveyor
- Single Bag Stand Alone Filtration Unit w/ Pump
- Dual Bag Stand Alone Filtration Unit w/ Pump
MACHINE DESCRIPTION
Used 2018 Matsuura VX-1000 5-Axis Machining Center featuring the advanced G-Tech 31i control. Built for heavy-duty precision, this high-rigidity machine boasts a large work table and high spindle speed, making it ideal for demanding mold, tool and aerospace production.
