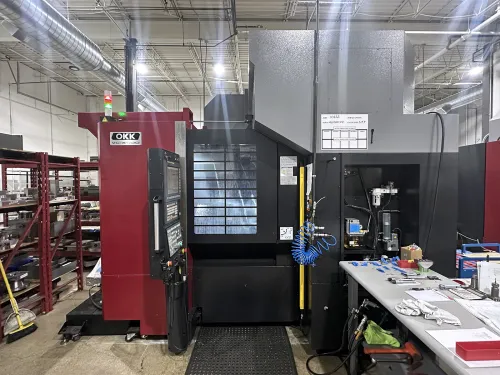

OKK VC-X500 2021
12000 RPM Spindle
-
OKK
-
VC-X500
-
2021
-
Series 31i-Model B5
-
#3725789
-
5 Axis Machining Center
MACHINE SPECIFICATION
-
X-Axis Travel
27.56"
-
Y-Axis Travel
33.46"
-
Z-Axis Travel
24.02"
-
A-Axis Travel
-120~+30
-
C-Axis Travel
360 deg
-
Distance from table top surface to spindle nose
5.91" ~ 29.92"
-
Distance from column front to spindle center
20.87"
-
Table Work Surface Area
19.69" x19.69"
-
Max. workpiece weight loadable on table
1102 lbs
-
Distance to the table work surface from the floor
42.52"
-
Spindle Speed
100~12000
-
Number of spindle speed change steps
Electric 2-step speed change
-
Spindle Nose
CAT 40 Big Plus
-
Spindle bearing bore diameter
2.56"
-
ATC
60
-
Dimensions
146.46" x 96.46"
-
Weight
26500 lbs
MACHINE EQUIPPED WITH
Simultaneous 5-Axis
- Spindle Taper CAT 40 Big Plus
- Renishaw OMM Probe
- Spindle Chiller
- Tool Presetter
- Coolant Filtration Unit
- Chip Conveyor
- 1000 PSI Spindle Thru Coolant
- Mist Collector
- Sensor door
MACHINE DESCRIPTION
Used 2021 OKK VC‑X500 5-Axis Machining Center – equipped with Fanuc Series 31i-Model B5 control. High-precision, industrial-grade performance: 700 × 850 × 610 mm travels, 500 kg table load capacity, 12 000 rpm spindle—ideal for complex multi-axis production.
