Open price not currently available. Please Contact Us

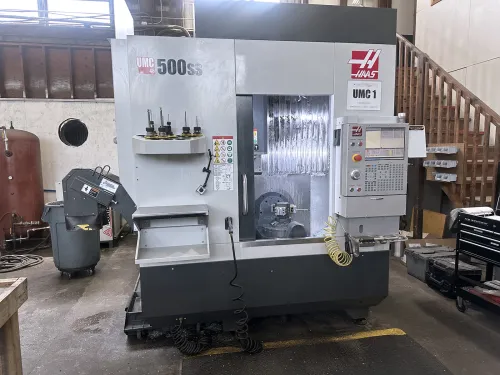

Haas UMC 500SS 2020
5 AXIS, THRU SPINDLE COOLANT, 50 ATC
-
Haas
-
UMC 500SS
-
2020
-
Haas CNC Control
-
#3716016
-
5-Axis Plus Machining Center
MACHINE SPECIFICATION
-
Spindle Taper Type
CAT#40
-
Spindle Speed
12,000 RPM
-
Spindle Motor
30 HP
-
Spindle Nose to Table Top
4"-20"
-
Tool Magazine Capacity
50
-
Tool Changer Type
Side Mount
-
Tool Change Time
2.8 seconds
-
Chip-to-Chip Time
4 seconds
-
B-Axis Travel
120 ° to 35- °
-
Max Speed
50 °/sec
-
Max Torque
1854 ft-lbf
-
Brake Torque
900 ft-lbf
-
Thru-Spindle Coolant
300 PSI
MACHINE EQUIPPED WITH
Wireless Intuitive Probing System Chip Filter Kit P-Pool Thru-Spindle Coolant Chip Conveyor Renishaw Probe 1GB Standard Program Memory Haas Connect: Remote Monitoring Media Display M-Code; M130 Compensation Tables WiFi Connection Color Monitor Remote Jog Handle Rigid Tapping Ethernet / LAN Macros Hours: 6800hrs
