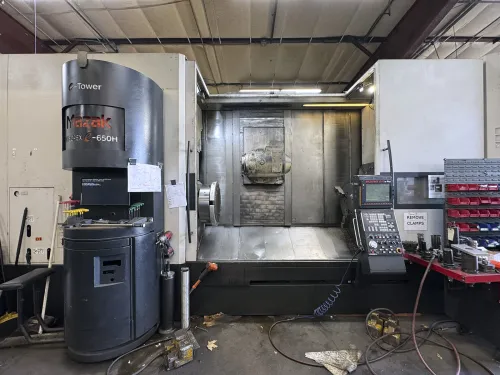

Mazak Integrex E-650HS 2004

MACHINE SPECIFICATION

• Maximum Swing

  36.2"

• Maximum Swing Over Carriage

  36.2"

• Maximum Turning Length

  80"

• DISTANCE BETWEEN CENTERS

  80"

• X-Travel

  40.35"

• Z-Travel

  78.00"

• Y-Axis Travel

  25"

• B-Axis Head Tilt

  -30° to +210°

• C-Axis Index Increment

  0.0001°

• Spindle Nose

  A2-15

• Chuck size on Main spindle

  24"

• Chuck size on Sub spindle

  24"

• Spindle Speed

  1,000 RPM

• Spindle Motor

  60 HP

• Live Milling Max RPM:

  5,000 RPM

• Live Milling Motor

  50 HP

• Spindle Taper

  CAT 50

• TOOL CAPACITY

  40 tools
