Open price not currently available. Please Contact Us

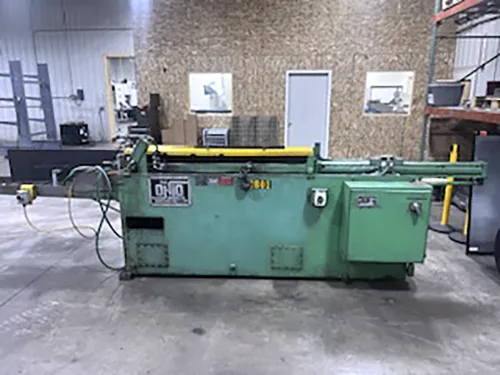

Ohio 5 Ton Horizontal Pull Broach 1976
48" Stroke| Extra Broaches Included
-
Ohio
-
5 Ton Horizontal Pull Broach
-
1976
-
N/A
-
#3720094
-
Broaching Machines
MACHINE SPECIFICATION
-
Tonnage
5
-
Stroke
48"
-
Cat No. HG 79338
-
CYLINDER BORE DIAMETER
4"
-
Cylinder Rod Diameter
2"
-
Broaching Speed
40 FPM
-
Return Speed
120 FPM
-
Hydraulic Pump Flow
21 GPM
-
Hydraulic Tank Capacity
70 Gallons
-
Coolant Tank Capacity
30 Gallons
-
Drilled & Tapped Mounting Plate
15" x 15"
-
Dimensions (L x W x H)
178" x 45" x 65"
MACHINE EQUIPPED WITH
Extra broaches to be included with machine
- Ohio Horizontal Broaching Machines with the “HC” model designation utilize a close-grained- high-tensile- one-piece cast iron guide head. Machines with the “HF” model designation employ a continuously welded and thermally stressed relieved fabricated steel guide head. Each is designed and constructed to assure the rigidity and stability required for precise tool tracking. And each model uses hardened and ground alloy steel machine ways to guide the machine pull head
The machine pull heads on Ohio Horizontal Broaching Machines are equipped with precision ground wear pads that are easily accessible for replacement when necessary. All pull heads can easily be adjusted for vertical tool alignment with the industry standard 2-inch - 8-pitch female thread for broach puller attachment. The rapid return of the broach pull head to its starting position is a welcome standard feature on all our horizontal broach machine models
Can be used to make keyways- squares- hexes etc- will accept any sized round broach stem depending on what "guide head" you have purchased for the machine.
MACHINE DESCRIPTION
Used Ohio 5-Ton Horizontal Pull Broach Machine (H548RR) — 48″ stroke, 40 FPM broach speed, 120 FPM return, 21 GPM hydraulic flow, 70 gal tank. Ideal for high-precision keyways, squares or hex shapes in a robust, industrial-grade broaching setup.
