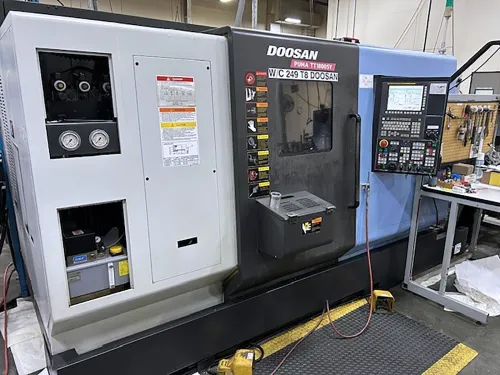

Doosan TT1800SY 2013

MACHINE SPECIFICATION

• Bar Capacity

  2.625"

• Chuck Size

  8"

• Spindle Speed

  5,000 RPM

• Spindle Motor

  30 HP

• X Axis Travel

  6.5"

• Z Axis Travel

  31.5"

• Rapid Rate Z Axis

  944 IPM

• Rapid Rate X Axis

  787 IPM

• Max Turning Dia

  9.1"

• Max Turning Length

  9.1"

• Max Swing

  9.1"

• Turret

• Turret Configuration (Upper + Lower)

  24 + 24 (48 Total Stations)

• O.D Tool Size

  0.8" x 0.8"

• Maximum I.D. Tool Size

  1.3"

• Turret Indexing Time

  0.15 Seconds

• Maximum Rotary Tool Speed

  5,000 RPM

• SUB & MAIN SPINDLE

• Spindle Speed.

  5000 RPM

• Spindle Motor (30 min / Cont)

  29.5 HP / 20.1 HP

• Maximum Spindle Torque

  153.5 Ft-Lbs

• Spindle Nose

  A2 #6

• Spindle Bearing Diameter

  4.3"

• Spindle Inner Diameter

  3.0"

• C-Axis Indexing

  360° in .001° increments

• Weight

  17,196 LBS
