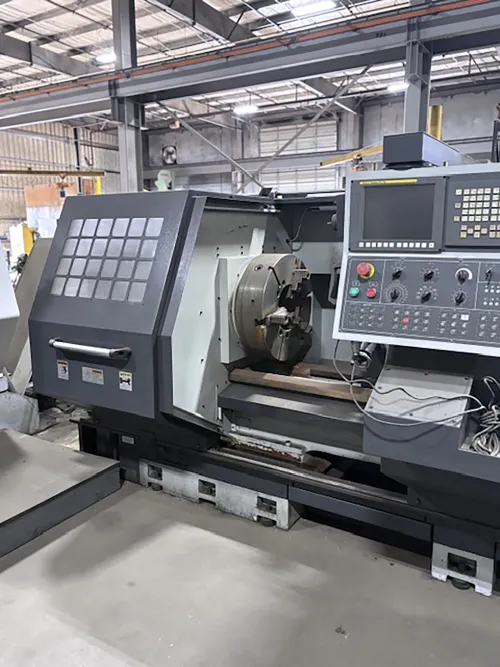

Ganesh GT-3080BB 2016

MACHINE SPECIFICATION

• Swing over Bed

  30″

• Swing over Cross-slide

  19”

• X-Axis Travel

  19-5/8”

• Z-Axis Travel

  80”

• Spindle Motor

  30 hp

• Spindle Speeds

  10 – 1,000 rpm

• Spindle Gear Ranges

  2 gear ranges (Low) 30 – 300 rpm - (High) 10 – 1,000 rpm

• Spindle Torque low / high

  1180 / 346 ft. lbs

• Spindle Bore

  6.69″

• Spindle Nose (front & rear) / bearing A2-11 / Taper Roller Bearings

• Rapid Traverse Feedrate (X & Z)

  394 ipm

• Tailstock Quill Diameter / Taper / Travel 4.92” / MT#6 / 7.87”

• Power Requirements

  230V/3Ph/60Hz

• Machine Weight

  13,230 lbs
