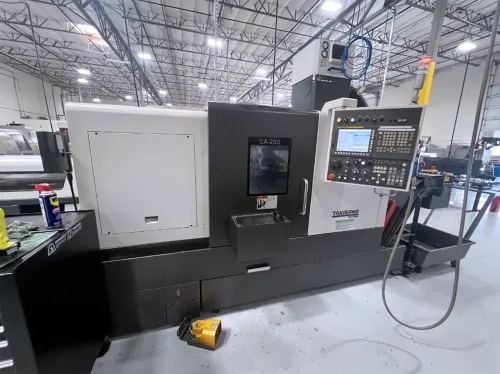

Takisawa LA-250 2018

MACHINE SPECIFICATION

• Distance Between Center

  34.6”

• Standard Chuck Diameter

  10”

• Max Turning Diameter

  17.7”

• Max Turning Length

  30.1”

• Bar Capacity

  3”

• X-Axis Stroke

  10”

• Z-Axis Stroke

  31.5”

• Spindle Speed

  3,500 rpm

• Spindle Nose

  A2-8

• Spindle Thru-Hole Diameter

  3.4”

• Spindle Bearing Diameter

  4.7”

• Spindle Motor (30 min/continuous)

  25/20HP

• Turret Stations

  12

• Weight of Machine

  10,925 lbs

• Size of Machine (L x W x H)

  115” x 77” x 71”
