KOMO Fusion 524 2007
3-Axis| (12) Transfer tables| 24' x 5'
-
KOMO
-
Fusion 524
-
2007
-
FANUC i
-
#3726097
-
CNC Router
MACHINE SPECIFICATION
-
Capacity
Table Size: 24' x 5' - Consisting of (2) 12' Pinned Aluminum Workpiece Tables
-
X-Travel
288"
-
Y-Travel
60"
-
Z-Travel
12"
-
Continuous Machining Capacity
24' x 5'
-
RPM
24000 Spindle
-
Speed
3150 ipm
-
HP
14
-
Hours
Under 15000 hours
-
AUTOMATIC TOOL CHANGER
15-Station
-
Spindle Taper
HSK 63F x ER40-75
-
Voltage
480V 3-Phase 60 hZ
MACHINE EQUIPPED WITH
R & L Side (6-Each Side) Manual Roller-Ball Type Transfer Tables With Pneumatic Positioning Locks (Air Actuated Ball Transfer Tables (12 total))
- Pallet Changeover System
- (2) 24' Pallets
- Traveling Table
- Stationary Bridge
- Portable Pedestal Type Control Stand With Hand Pendant
- Koolant Koolers Dimplex Thermal Solutions Model JT750 Spindle Oil Chiller
- Dust Collection System With Cyclone Receiver & Dust Filter Bags
- Vacuum Tables
MACHINE DESCRIPTION

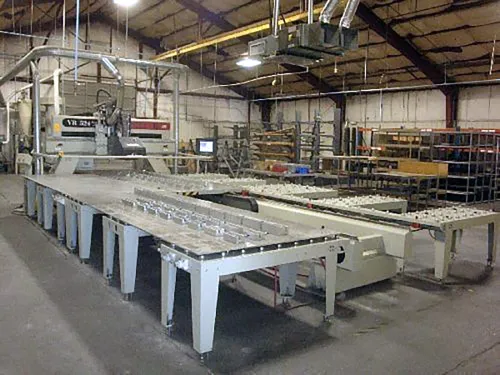

Used Komo Fusion 524 3-Axis CNC Router (2007) with Fanuc control. This reliable industrial machine offers high precision and efficiency for various applications. Perfect for woodworking, plastics, and metalworking. Contact us today for more details and pricing!
