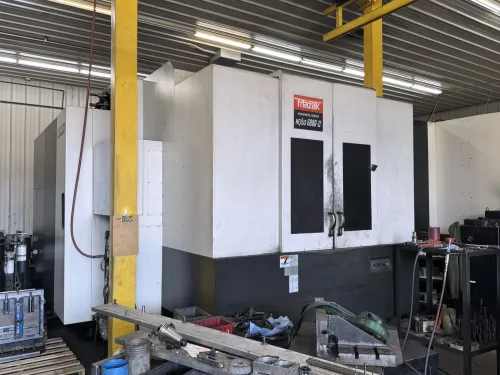

Mazak HCN 6800 2008
1000 PSI coolant Thru, Extended 80 tool capacity, Renishaw Probing
-
Mazak
-
HCN 6800
-
2008
-
Matrix Nexus
-
#3722425
-
Horizontal Machining Center
MACHINE SPECIFICATION
-
Pallet Dimension
24.8” x 24.8”
-
Pallet Load Capacity
3306 lbs
-
Table Index
1 Degree / 360 Positions
-
Max Workpiece Diameter
41.34”
-
Max Workpiece Height
51.18”
-
X-Axis Travel
41.34”
-
Y-Axis Travel
35.43”
-
Z-Axis Travel
38.58”
-
Distance from the Spindle End to the Pallet Center
3.94” – 42.52”
-
Distance from the Spindle Center to the Pallet Top
3.94” – 39.37”
-
Spindle Taper
CAT 50
-
Spindle Speed
8,000 RPM
-
Main Motor50HP
30-min / 40HP Cont.
-
Rapid travel
2362 IPM
-
Max. Cutting Feed Rate
2362 IPM
-
No. of Tool Pockets
60
-
Chip To Chip Time
4.2 – 4.6 sec
-
Machine Dimensions
226” x 129” x 133
-
Machine Weight
41,887 lbs
MACHINE EQUIPPED WITH
- MAZATROL MATRIX Nexus Control
- 8000RPM Hi-Torque Spindle
- 60 Tool Chain Magazine
- Mazak Super Flow T8 – 1000 PSI
- Mazak Monitoring System B – Optical OMP60 Probe
- EIA Inspection Plus Probing Software
- Index Table 1 Deg/360 Positions
- Chip Conveyor
- Rear Disposal
