Open price not currently available. Please Contact Us
Cincinnati 135T 1988
135 Ton| New Control in 2025, 12' bending length
-
Cincinnati
-
135T
-
1988
-
N/A
-
#3729721
-
Hydraulic Press Brake
MACHINE SPECIFICATION
-
General Specifications
-
Capacity
135 Tons
-
Overall Length of Bed & Ram
12'
-
Distance Between Housings
10' 6.5"
-
Stroke
8"
-
Open Height
15"
-
Closed Height
7"
-
Throat Clearance
12"
-
Speed Approach
290 Inch/Minute
-
Form
1 to 270 Inch/Minute
-
Return
1 to 270 Inch/Minute
-
Width at Top of Bed
4.5"
-
Main Motor
25 HP 460/3/60
MACHINE EQUIPPED WITH
- Cincinnati Autoform PC HMI Control (Replaced in 2024) 24" Six Axis Gauge (X1
- X2
- Z1
- Z2
- R1
- R2) AutoCrown Deflection Compensation LaserSafe Safety Curtains Precision RAM Leveling with Dual Linear Glass Scale Encoders Off Load Center Compensation Variable Volume Load Sensing Pump and Servo Hydraulic System 3-Position Electric Foot Switch Presense Sensing Interface Control Mounted Palm Button Station Manuals Interlocked Construction Some Tooling included
MACHINE DESCRIPTION

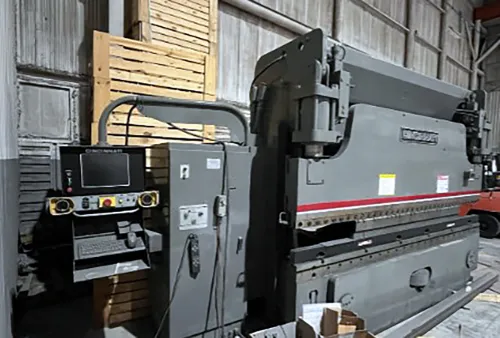

Used Cincinnati 135 Ton 12′ Hydraulic Press Brake with Cincinnati Autoform PC HMI Control — Powerful industrial CNC press brake for reliable metal forming with precision control and easy programming. Ideal for heavy-duty bending tasks in fabrication shops.
