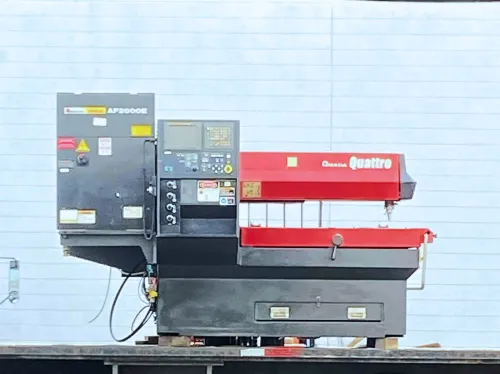

Amada AF2000E 2007

MACHINE SPECIFICATION

• Laser Type

  Output CO laser, axial-flow AF 2000E oscillator

• Laser Power

  2,000 W (2 kW)

• Working Area

  (X × Y travel) 1,260 mm × 1,260 mm

• Z Axis Travel

  100 mm

• Maximum Material Thickness

• Mild steel with O

  ~12 mm

• Stainless Steel

  ~5 6 mm

• Aluminium

  ~3 4 mm

• Controller

  CNC FANUC 16i L / 16i LB series,

• Electrical / Power Requirements Main connection

  ~200 V; ~40 kVA

• Air Pressure Required

  Around 6 bar compressed air

• Positioning / Travel Speeds

• X/Y/Z

  ~30 / 30 / 15 m/min

• Simultaneous speed

  ~42 m/min

• Accuracy / Repeatability

• Positioning Accuracy

  ±0.01 mm

• Repeatability

  ±0.005 mm

• Other Features / Options

• HS sensing head

• CleanCut, AluCut modes

• Gas control, automatic corner data

• Optional tube cutting device
