Open price not currently available. Please Contact Us

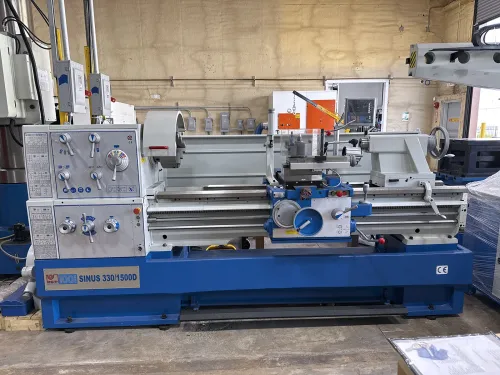

Knuth Sinus D 330/1500 2024
Never put into production - New 2024 - 27% off Retail
-
Knuth
-
Sinus D 330/1500
-
2024
-
X.Pos 3.2
-
#3721267
-
Manual Lathe
MACHINE SPECIFICATION
-
3 Axis Digital Read Out
-
Spindle HP
10HP
-
Working Area
-
Center Width
60 in
-
Turning Diameter over Bed
26 in
-
Turning Diameter over Support
17 in
-
Turning diameter without ap Bridge
35 in
-
Travel Cross Slide
14.5 in
-
Travel Top Slide
9 in
-
Gap Bridge Length
12.5 in
-
Bed Width
16 in
-
Top Slide Swivel Range
45
-
Headstock
-
Spindle Speed
25 – 1600 rpm (16)
-
Spindle Bore
4 in
-
Spindle Mount
D1-8
-
Spindle Taper
MT5
-
Feed
-
Feed X-axis
(25) 0 - 0.03 in/rev
-
Feed -axis
(25) 0 - 0.06 in/rev
-
Rapid Feed X-axis
79 in/min
-
Rapid Feed -axis
158 in/min
-
Threading
-
Metric
(54) 0.45-120 mm
-
Diametric
(42) 0.88-160 DP
-
Module
(46) 0.01 - 2.36 in
-
Whitworth
(54) 0.44-80 P
-
Tailstock
-
Tailstock Quill Diameter
3.5 in
-
Tailstock Taper
MT 5 / 3.5 in
-
Tailstock Quill Stroke
9.25 in
-
Tailstock Traverse Adjustment
0.5 in
-
Power Requirements
460V/3 Phase/60 hz
-
Dimensions
126" x 49" x 63"
-
Weight
6,000lbs
MACHINE EQUIPPED WITH
3 Axis Position Indicator
- 3-Axis position indicator
- 1 3 in. 3-jaw chuck
- Quick change tool holder head
- Quick change tool holder
- Splatter guard
- Coolant system
- Steady rest
- Follow rest
- Chuck guard
- Halogen work lamp
- Reducing sleeves
- Dead centers
- Operating tools
- Operator manual
