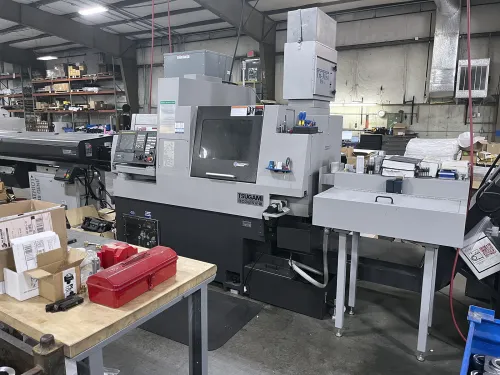

Tsugami BO325V-III 2022

MACHINE SPECIFICATION

• Number of Axes

  7 (X1,Y1,Z1,X2,Z2,C1,C2)

• Chucking Bar stock Diameter

  0.31 - 1.25"

• Max Machining Length - With Guide Bushing

  12.59"

• Max Machining Length - Without Guide Bushing

  70mm

• (w/ direct Drive Rotary GB)

• Max Drilling Diameter

  47"

• Max Tapping Diameter

  M10

• Max Back Spindle Chucking Diameter

  1.25"

• Max Back Spindle Drilling Diameter

  .39"

• Max Back Spindle Tapping Diameter

  M10

• Max Tool Spindle Drilling Diameter

  .31"

• Max Tool Spindle Tapping Diameter

  M6

• Max Tool Spindle Slotting Diameter

  1.77"

• Main Spindle Speed:

  200 - 8000 rpm

• Back Spindle Speed

  200 - 8000 rpm

• Rapid Traverse Rate

  32 m/min (X1,Y1,Y2 24 m/min)

• Tool Storage Capacity (std/max)

  29

• Stick Tool Size

  16 x 16 x 100mm

• Tooling Configuration

• Live Cross Drills

  5

• OD turning tools

  5

• ID Tools (by sub spindle) 2 (op live tools)

• ID/BW Tools

• BW Tools

  4 Fixed

• Main Spindle

  3.7 / 5.5 kW

• Back Spindle

  2.2 / 3.7 kW

• Tool Spindle

  1.0 kW

• Rotary Guide Bushing

  0.75 / 1.5 kW(direct drive GB)

• X1

  0.5 kW

• Y1, Z1, X2, Z2

  0.75 kW

• Coolant Pump

  400 W

• Lubricating Pump

  3 W

• Power Requirements

  22.4 KVA

• Air Requirements

  0.4 MPa or Above

• Air discharge rate

  100 NL/min

• Coolant Tank Capacity

  190 L (47.5 gal)

• Machine Dimensions

  88" x 60" x 81"

• Machine Weight

  10,694 lbs
