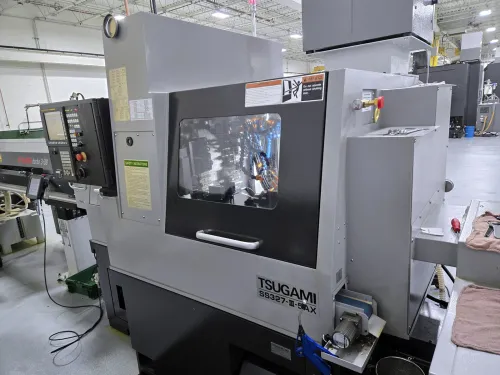

Tsugami SS327-III 5AX 2022

MACHINE SPECIFICATION

• Max. Chucking Barstock Diameter

  ø32 mm (1.26 in.)

• Max. Machining Length

  330 mm (12.99 in.) (Direct-Drive Guide Bushing)

• Chucker Mode

  70 mm (2.76 in.)

• Max. Drilling Diameter

  ø12 mm (.47 in.)

• Max. tapping diameter

  M10

• Max. Back Spindle Chucking Barstock Diameter

  ø32 mm (1.26 in.)

• Max. Back Spindle Drilling Diameter

  ø10 mm (.39 in.)

• Max. Back Spindle Tapping Diameter

  M8

• Max. Tool Spindle Drilling Diameter

  ø8 mm (.31 in.)

• Max. Tool Spindle Tapping Diameter

  M6

• Max. Tool Spindle Slotting Cutter Diameter

  ø45 mm (1.77 in.)

• Machine

• Capability

• Main Spindle Speed

  200 to 8,000 min-1

• Back Spindle Speed

  200 to 8,000 min-1

• Tool Spindle Speed

  200 to 6,000 min-1

• Total Tool Number

  (Standard Spec.) 38

• Tool Size

  .625 in. x 3.94 in. (square) / 25 mm (round)

• Rapid Traverse Rate

  35 m/min (105 ft/min

• Rapid Traverse Rate (X1, Y1, Y2)

  24 m/min (78.74 ft/min)

• B-Axis Tool Spindle Speed

  7,000 RPM

• Spindle Index

  C1 Axis and C2 Axis

• Motors

• Main Spindle

  3.7/5.5 kW

• Back Spindle

  3.7/5.5 kW

• Cross Drill of Front Tool Post

  1.0 kW

• B-Axis Tool Spindle

  1.0 kW

• Rotary Tool of Back Tool Post

  1.4 kW

• Rotary Guide Bushing

  1.5 kW

• Z1, Y1, X2, Z2

  .75 kW

• X1, Y2

  .5 kW

• Coolant Pump

  .4 kW

• Lubricating Pump

  3 W

• Others

• Compressed Air Requirements

  .4 MPa or more

• Air discharge rate

  100 NL/min

• Power Source Requirements

  16.8 KVA

• Coolant Tank Capacity

  260 L

• *(Width x depth x height)

  2630 x 1280 x 2010 mm 103.5” x 50.4” x 79”

• Weight

  4,000 kg (8,818 lbs.)

• NC SPECIFICATIONS

• ITEMS

  SS327-III-5AX

• NC Unit

  FANUC 31i-B5

• Axis Name

  X1, Z1, Y1, X2, Y2, Z2, C1, C2

• Least input increment

  0.001 mm (X1/X2 axis in diameter)

• Least Command Increment X1/X2 axis

  0.0005 mm, other: 0.001 mm

• Maximum Programmable Value

  ± 8 digits

• Interpolation method

  Linear/Circular/Polar/Helical/Cylindrical

• Rapid Traverse Function

  35 m/min (115 ft/min) (X1/Y1/Y2 24 m/min (78.74 ft/min)

• Feedrate Function

  1 to 6,000 mm/min

• Feedrate Override

  0 to 150%, 10% step

• Dwell G04

  0 to 99999.999

• ABS/INC Command X, Z, Y, C

  Absolute U, W, V, H: Incremental

• Tool Offset Value

  ± 6 digits

• Tool Offset Pairs

  99

• LCD/MDI

  10.4” color LCD

• Display Language

  English

• Data Server

  4 MB

• Registerable Programs

  1000

• Auxiliary Function Main

  M 5 digits

• Spindle Function

  S 5 digits

• Tool Function

  T 4 digits
