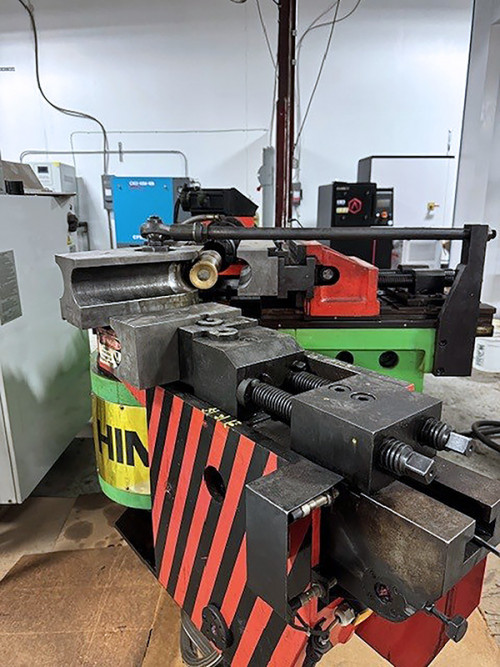

Hines cnc200 2019

MACHINE SPECIFICATION

• Capacity

  2.5″ OD x .200 Wall

• Max. Feeding Capacity

  55ft/min

• Maximum POB

  28r/min

• Standard Maximum Radius

  12 inch

• Maximum Bend Angle

  190 degrees

• Operating Pressure

  2000 psi

• Reservoir Capacity

  175 US gallons

• Approximate Weight

  10000lbs

• Approximate Dimensions

  15′ L x 5′ W x 4.5′ H

• Voltage

  220 volt/440/3 Phase/60Hz; 50Hz Optional

• Bend Angle Accuracy (+ / -)

  .1 degree

• Bend Arm Speed

  5 rpm

• Maximum Tube Length Over Mandrel

  8ft

• Motor

  25HP
