Open price not currently available. Please Contact Us

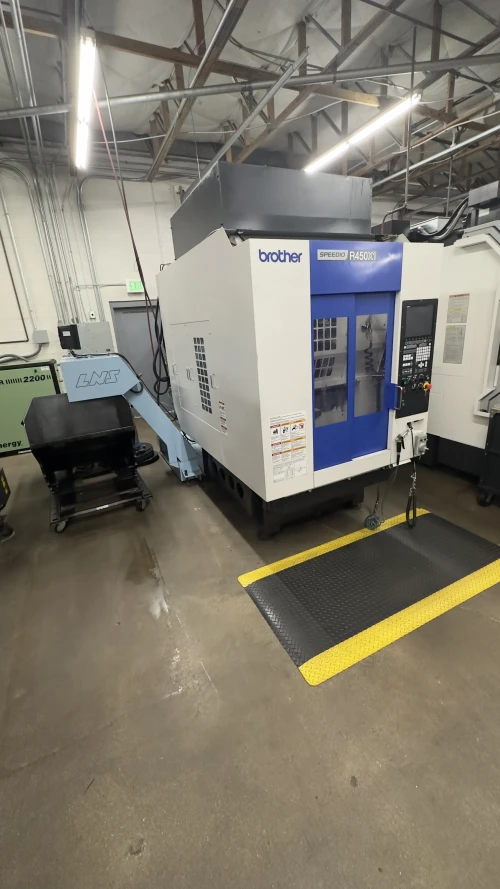

Brother Speedio R450X1 2015
-
Brother
-
Speedio R450X1
-
2015
-
Brother Mode B II C00
-
#3659413
-
Vertical Machining Center
MACHINE SPECIFICATION
-
Z Axis Travel
12"
-
Table Size
23.6” x 11.8”
-
Maximum Weight on Table
265 / 441 lbs
-
X Axis Travel
17.7”
-
Y Axis Travel
12.6"
-
Spindle Nose to Table
7.9” – 19.9”
-
Spindle Taper
BT30 Taper Dual Contact
-
Spindle Speed
16,000 RPM
-
Spindle Motor
9.8/6.5 HP
-
Change Time (Tool to Tool) (Chip to Chip)
.8 sec/ 1.6 sec
-
Cutting Feed Rate
1181 IPM
MACHINE EQUIPPED WITH
16000 RPM CTSI Spindle (Coolant Through Spindle Interface)
- 9.8/6.5 HP Main Spindle Motor - IPM Motor Type
- Spindle Taper Air Blast and Back Washing System
- Automatic Grease Lubrication System
- Chip Shower System
- Manual Pulse Generator
- Work Light Kit (2-Lights)
- Spindle Override
- Expanded Memory (500MB)
- Shower Gun
- TURBO LH/RH Side Discharge MH250 Conveyor with Tank & Interface
- 435 PSI High Pressure Pump
- Renishaw OMP40 Spindle Probe Package
- Metrol tool setter and tool breakage detection (2 ea. 1 per pallet)
- Big Plus Coolant Spindle With Tool Wash
- 4TH-Axis Rotary Index Table: Nikken CNCZ-180LSABR2-QT
- Pallet Changer
MACHINE DESCRIPTION
Used Brother Speedio R450X1. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Brother Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
