Open price not currently available. Please Contact Us

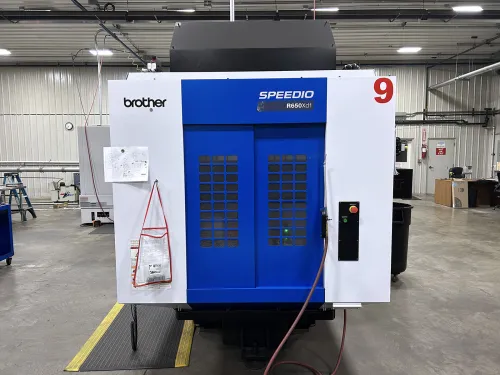

Brother R650Xd1 2022
Less Than 1000 Cutting Hours, 16,000RPM Spindle
-
Brother
-
R650Xd1
-
2022
-
Brother CNC-D00
-
#3719802
-
Vertical Machining Center
MACHINE SPECIFICATION
-
Number Of Tables / Pallets
2
-
Table-L
31.5"
-
Table-W
15.7"
-
Maximum Weight on Table
441 lb
-
Spindle Nose to Table Top
13.8" ~ 25.8"
-
X - Axis Travel
25.6"
-
Y - Axis Travel
15.7"
-
Z - Axis Travel
12"
-
Rapid Traverse Rate - X
1,696 in/min.
-
Rapid Traverse Rate - Y
1,696 in/min.
-
Rapid Traverse Rate - Z
1,696 in/min.
-
Cutting Feed Rate
1,181 in/min.
-
Spindle Speed
16,000 RPM
-
Spindle Taper
CAT30
-
AUTOMATIC TOOL CHANGER
28
-
Tool Diameter
3.1"
-
Tool Length
7.9"
-
Tool Weight
6.6 lbs.
MACHINE EQUIPPED WITH
- Chip Conveyor with Integrated High Pressure Coolant
- Manual Pulse Generator
- NOP 1000psi CTS Pump and Filter Kit
- LNS Chip conveyor
- Renshaw OMP 40 Spindle Probe
- (2) Blum Z-Nano with 150 MM Risers for R Series
- Fourth Axis Index Table with Interface
- SOP Feature Coordinate System G6 8.2 Sub plate fits T – 200 A.D. and Support table one per table
- Support table with clamp for T – 200 A.D. D and T. – 200 a
- Rotary joint for T – 200 A.D. DNT – 200 a rotary table 6P
