Open price not currently available. Please Contact Us

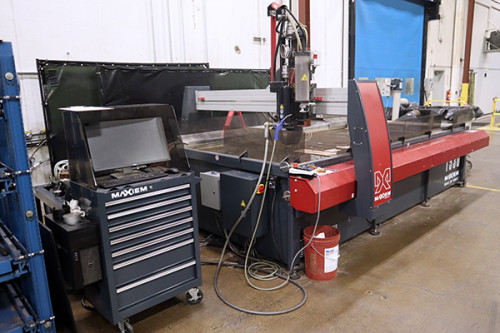

Omax Maxiem 1530 2016
-
Omax
-
Maxiem 1530
-
2016
-
N/A
-
#3628367
-
Waterjet
MACHINE SPECIFICATION
-
PSI
50,000
-
Table Size
12' 2" x 5' 8" (3,708 mm x 1,727 mm)
-
Cutting Envelope
10ft 0” x 5’ 2” (3048 mm x 1575 mm)
-
Z-Axis Travel
12" (305 mm)
-
X-Y Cutting Travel
10' 0" x 5' 2" (3,048 mm x 1,575 mm)
-
Speed
500 in/min (12,700 mm/min)
-
Linear Position Accuracy
±0.003" (±0.076 mm)
-
Repeatability
±0.001" (±0.025 mm)
-
Material Support Slats
34 4" x 14Ga Galvanized Steel (102 mm x 2 mm)
-
Max Material Weight
300 lbs/sq ft (1,465 kg/sq meter)
-
Electrical Requirements
3-Phase, 380-480 VAC ±10%, 50-60 Hz
-
Noise Level
Below 80 dBA at one meter for submerged cutting
-
FOOTPRINT (WITH PUMP & CONTROLLER)
14' 1" x 10' 10" (4,293 mm x 3,302 mm)
-
HEIGHT (WITH WHIP PLUMBING)
10' 6" (3,200 mm)
-
OPERATING WEIGHT
15,700 lb (7,121 kg)
-
Weight (tank empty)
4,000 lb (1,814 kg)
MACHINE EQUIPPED WITH
- Model M30 pump – 30HP/50000PSI
- A-Jet 5-Axis cutting head
- Terrain Follower
- Variable Speed Solids Removal System
- Water Level Control
- 600lb Abrasive Feed System
- Laminar Flow Filter System
MACHINE DESCRIPTION
Used 2016 Omax Maxiem 1530 for sale. This pre-owned Omax Water Jet is located in the USA. This Water Jet is available for a limited time, call us today for a quote. If you have any questions about our Omax Maxiem 1530 listing, contact us and we will be happy to help.
