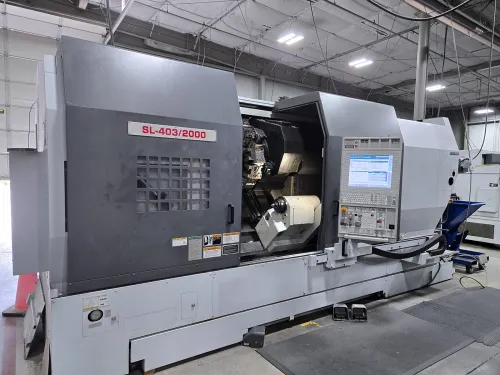

DMG Mori SL403BMC/2000 2014
Live Milling| 24" chuck with 5.1" spindle bore| 5 Live tool holders
-
DMG Mori
-
SL403BMC/2000
-
2014
-
Fanuc
-
#3729104
-
CNC Lathe
MACHINE SPECIFICATION
-
Swing over Bed
36.8"
-
Swing over cross slide
29.1"
-
DISTANCE BETWEEN CENTERS
91.5"
-
Max Turning Diameter
24.0"
-
Max Turning Length
84.9"
-
X-Axis Travel
14.7"
-
Z-Axis Travel
82.7"
-
Max Spindle Speed
2400 RPM
-
Number of Spindle Speed Ranges
2
-
Type of Spindle Nose
JIS-A2-11
-
THROUGH-SPINDLE HOLE DIAMETER
5.1"
-
MIN SPINDLE INDEXING ANGLE
0.001°
-
Number of Tool Stations
12
-
Shank Height For Square Tool
1-1/4"
-
Shank diameter for boring bar
2-1/2"
-
Turret Indexing Time
0.4 SEC
-
MAX ROTARY TOOL SPINDLE SPEED
3000 RPM
-
RAPID TRAVERSE X/Z/C
787.4 / 944.9 / 56
-
Tailstock Travel
78.7"
-
Tailstock Spindle Diameter
5.9"
-
Taper Hole of Tailstock Spindle
MT#5, BUILT-IN
-
Spindle Drive Motor
50 HP
-
Rotary Tool Spindle Drive Motor
12 HP
-
Electrical power supply
52.3 KVA
-
Coolant Tank Capacity
87.1 GAL
-
Machine Dimensions
243" × 101" × 100" TALL
-
Machine Weight
33,000 LBS
MACHINE EQUIPPED WITH
DMG MORI FANUC-32iB MAPPS 4 CONTROLS
- PART STORAGE 32 KBYTE 8QM
- USER MEMORY AREA BUILT-IN MAPPS 6GB
- PROGRAMMABLE TYPE Z-AXIS TRAVEL TAILSTOCK
- HIGH-PRESSURE COOLANT 635W / 1040W
- IN-MACHINE TOOL PRESETTER
- SPINDLE OVERRIDE FOR THREAD
- TOOL LIFE MANAGEMENT
- MAPPS MONITORING ADAPTER PROVIDED
- 24" B24 KITAGAWA 3-JAW HYDRAULIC CHUCK
- CHIP CONVEYOR
- COOLANT TANK & PUMPS
- (5) LIVE TOOLING
- (3) STATIC TURNING HOLDERS
- (3) BORING BAR HOLDERS
MACHINE DESCRIPTION
Used 2014 DMG Mori SL403BMC/2000 CNC Lathe — heavy-duty machining center, powered by Fanuc 32iB MAPPS‑4 control, it handles complex turning and milling jobs with efficiency and precision. A reliable industrial-grade lathe ideal for large-part production.
